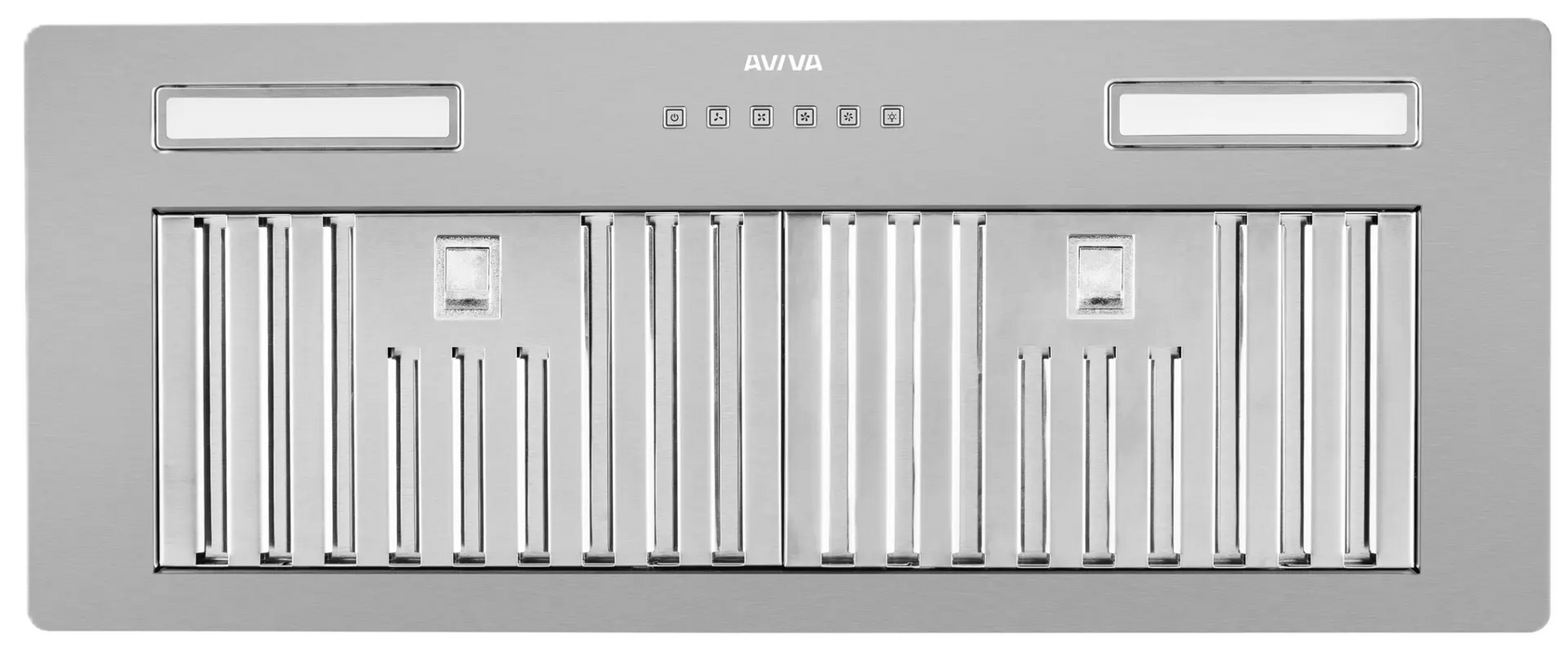

AVIVA AVP278S HOOD INSERT

CONTROLS
AND FUNCTIONS
SPECIFICATIONS
AND DIMENSIONS
Control Soft touch square electronic
controls
Lighting 2 x 3W rectangular LED bulbs -
3 color levels (white, soft white,
yellow)
Power and
speed
860 CFM, 4-speeds
Sound level Speed 1: 1.5 sones
Speed 2: 2.3 sones
Speed 3: 4.0 sones
Speed 4: 5.3 sones

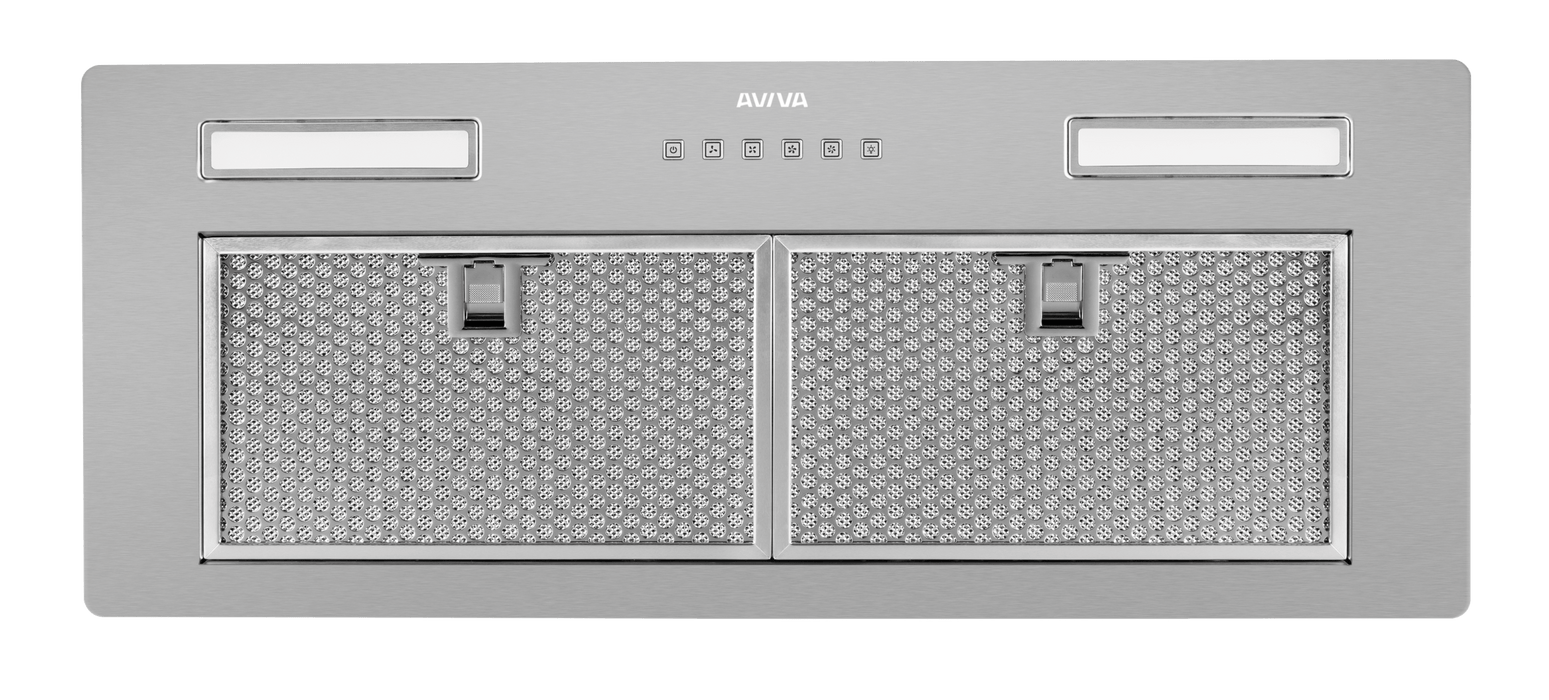

Filter Type 2 aluminum micro hole filters
and stainless steel baffle filters

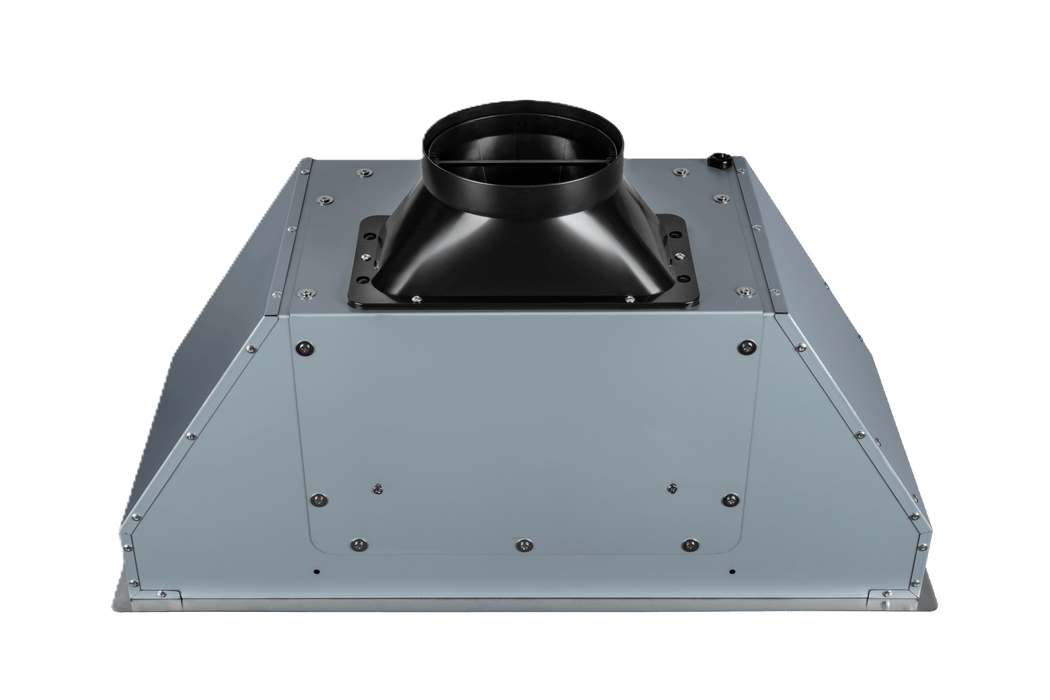

Duct transition 6” / 8” round top
3 1/4” x 10” top and rear
Power-off
Delay Timer
Yes
Dimensions 27 3/4” (W) x 11 3/8” (D) x 11 3/8” (H)

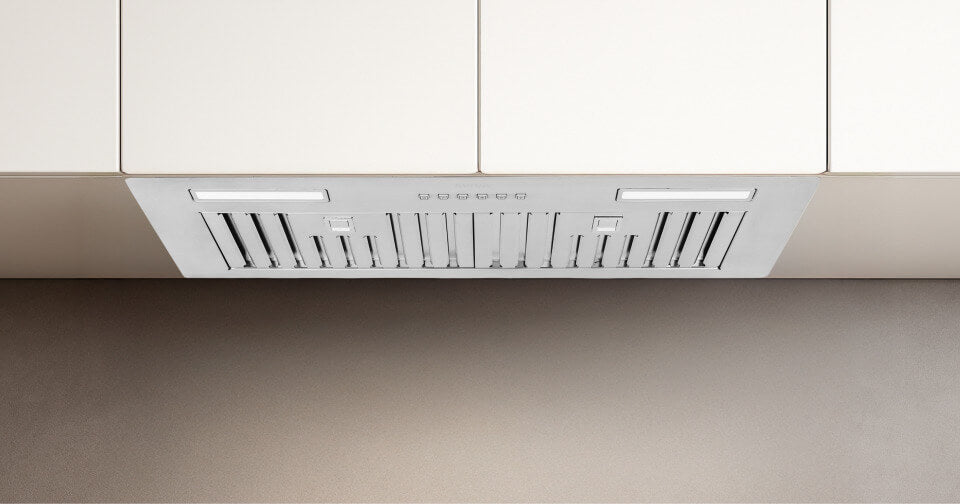

Flush Fit
Installation
Yes
Stainless steel
grade
201
Electrical
requirements
120V / 60Hz
3-prong plug included
Warranty 2-year parts and labour
UPC code 628173081321
