AVIVA 30" WALL MOUNTED CHIMNEY HOOD 860 CFM AVH-308CS2

CONTROLS
AND FUNCTIONS
SPECIFICATIONS
AND DIMENSIONS

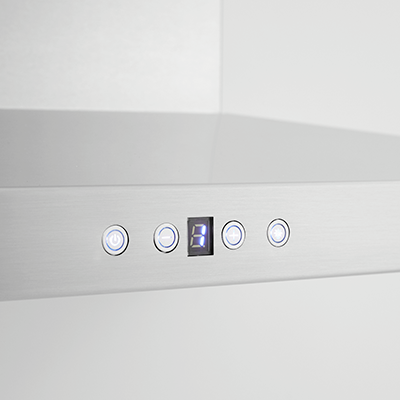

Control Soft touch with LCD display
Lighting 2 bulbs, 3W LED
Power
and speed
860 CFM, 6-speeds
Sound Level Speed 1, 2.4 sones
Speed 6, 6.2 sones

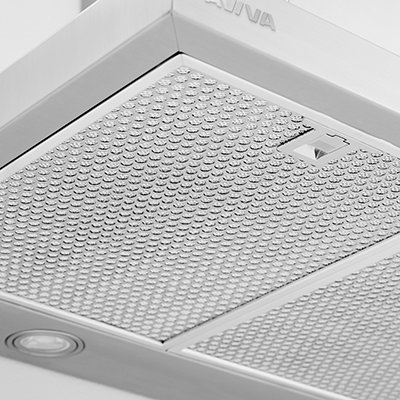

Filter Type 2 aluminium micro hole filters

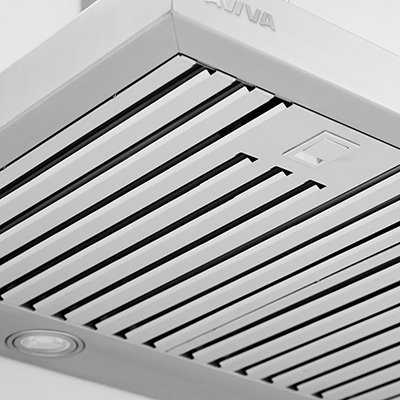

and stainless steel baffle filters
Duct transition 6” and 8’’ round top
Chimney Included, up to 9’0’’ ceilings
Power-off
Delay Timer
Yes
Clean Filter
Reminder
Yes
Dimensions 29 1/2’’ (W) x 19 3/4’’ (D) x 1 3/4’’ (H)
Stainless steel
grade
201
Electrical
requirements
120V / 60Hz / 2.7A
Accessories
(optional)
AD-884S-22 (Chimney
extension, 884 mm high,
replaces the upper portion
of the standard chimney)
Warranty 1-year parts and labour
UPC code 628173080171
