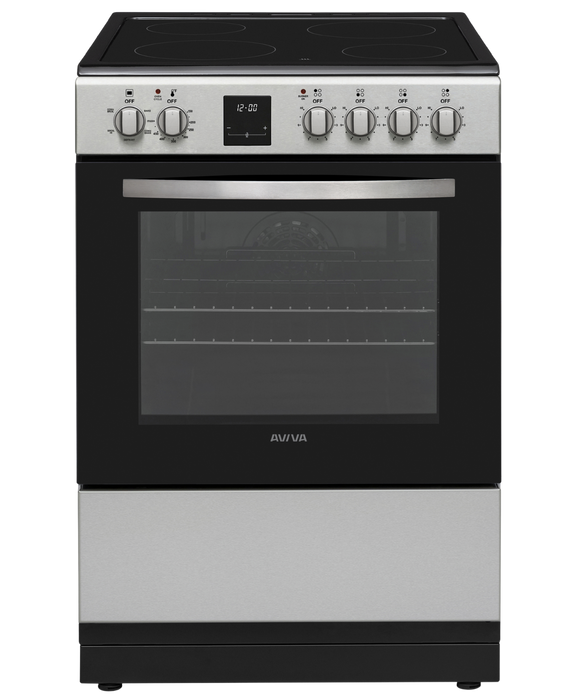

AVIVA 24" ELECTRIC SLIDE IN RANGE ACRE24CSB

SPECIFICATIONS
AND DIMENSIONS
ACRE24CSB
24” ELECTRIC RANGE
Element Specifications
• Right Front Element Burner Size: 6”
• Right Rear Element Burner Size: 8”
• Left Rear Element Burner Size: 6”
• Left Front Element Burner Size: 8”
• Right Front Element Burner Wattage: 1200W
• Right Rear Element Burner Wattage: 2000W
• Left Rear Element Burner Wattage: 1200W
• Left Front Element Burner Wattage: 2000W
Oven Specifications
• Bake Element Wattage: 2300W
• Broil Element Wattage: 2600W
• Convection Wattage: 2300W
• Convection Type: Fan
• Rack Position Type: Embossed
• Number of Rack Position: 6
• Number of Rack: 2 units, chromed
• Oven Interior Color: Black Enamel
• Oven Light Type: Halogen, G9 type
• Oven Light Quantity: 1
• Oven Light Wattage: 25W
• Bottom Drawer Storage: Yes
Dimensions
• 23 1/2” (W) x 23 1/2” (D) x 35 1/2” (H)
• Depth with Door 90° Open: 40 13/16”
• Oven Interior Width: 18 1/2”
• Oven Capacity: 2.44 cu. ft. / 69L
Electrical Specifications
• Power Cord Included
• Electrical Requirements: 240V / 60Hz / 35-39.6A
Certifications and Warranty
• Warranty: 2 year parts & labor
• ETL Listed: Yes
UPC: 628173081048

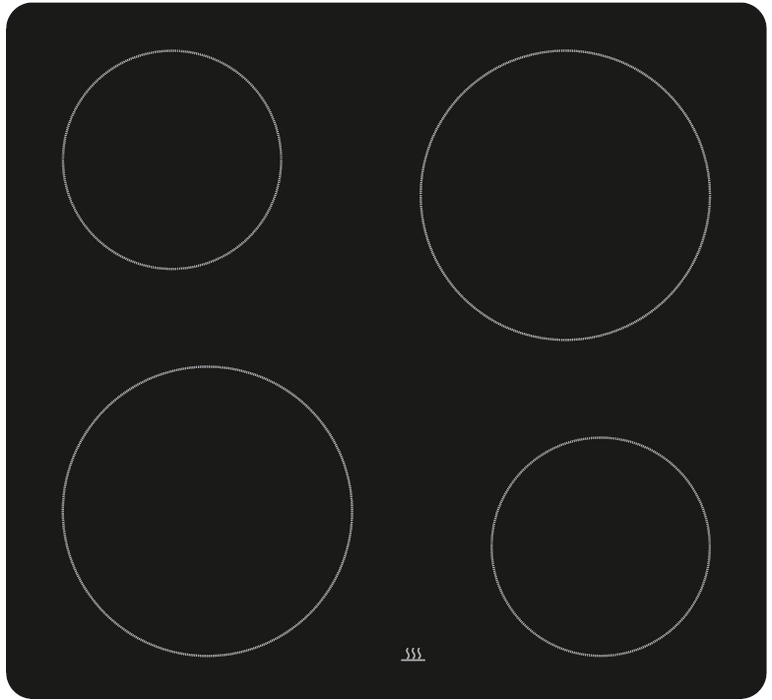

Surface Controls
• Cooking Surface Type: Smooth Electric
• Element On Indicator Light: Yes
• Hot-Surface Indicator Light: Yes
• On/Off (for each element): Yes

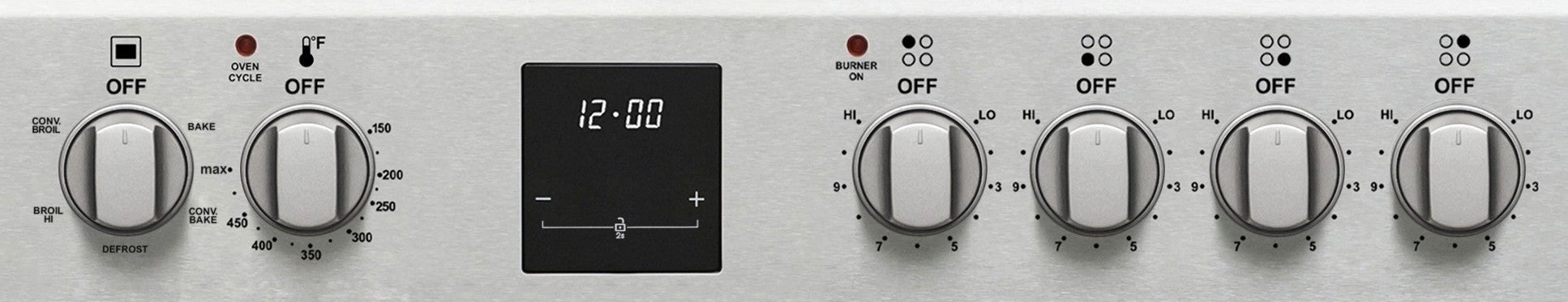

Oven Controls
• Bake: Yes
• Broil: Yes
• Convection Bake: Yes
• Convection Broil: Yes
• True Convection: Yes
• Hot Surface: Yes
• Defrost: Yes
• Oven Indicator Light: Yes
• Oven Light: Yes
• Timer: Digital
• Timer On/Off: Yes
• Up/Down Arrow: Yes
• Sabbath Mode: No
